Digital hydraulic balancing
blossom-ic Smart Home System with self-learning digital hydraulic balancing of single- and two-pipe heating systems and panel heating systems.
With the blossom-ic system, hydraulic balancing becomes child's play. Save yourself time-consuming assembly work on the pipe network and the installation of presettable valves or manifolds with flowmeters. Simply and conveniently replace the existing components with the blossom-ic system.
A costly and time-consuming calculation of the room-by-room heat requirement for existing systems is no longer necessary. Our gateway, in combination with the intelligent software, automatically and self-learningly takes over the hydraulic balancing during the next heating phases.
Should the heat requirement change due to further energy-saving construction measures, the system will immediately adapt to the new requirements. The system also reacts dynamically to new temperature inputs and ensures constant and even heat distribution.
Due to the self-learning process, the valves are adjusted automatically and dynamically as demand changes. With conventional static hydraulic balancing, on the other hand, a new hydraulic balancing must be carried out if the spatial conditions or the heating system change..
The blossom-ic thermostats/actuators make a regular calibration run. This is especially important in the summer or autumn months. In conventional systems, the pins of the thermostatic valves are in the same position over the entire period and often get stuck.
With our blossom-ic system you get a digital hydraulic balancing combined with a smart home radio control system for heating control with expandable functions, in only one product. In general, blossom-ic components can be used for new installations and renovations as well as extensions of existing installations and impress with a very good cost/benefit ratio. The blossom-ic system can also be used for single-pipe heating systems. The blossom-ic system automatically detects this change and adjusts the uniform heating within a very short time (2-3 heating phases). The blossom-ic system adapts individually and electronically to the conditions and thus offers an error-free calculation of the room heating loads.
Digital hydraulic balancing with blossom-ic
blossom-ic Smart Home System with self-learning digital hydraulic balancing of single- and two-pipe heating systems and panel heating systems - based on intelligent algorithms.
Unique method - digital, fully automatic and adaptive
Very short assembly times
Based on intelligent algorithms
No intervention in existing piping and hydraulics necessary
Up to 30% energy saving

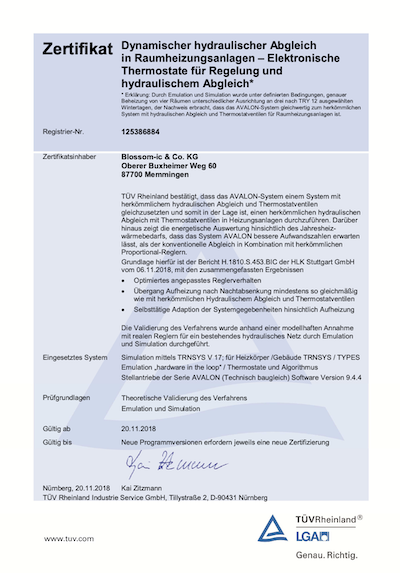

Extensive testing by neutral testing institutes
What you get from it
Both you and your customers benefit from the advantages of digital hydraulic balancing.
The advantages for you
Very short assembly times
Pioneer with digital systems
Unlimited use from single-family homes to large projects

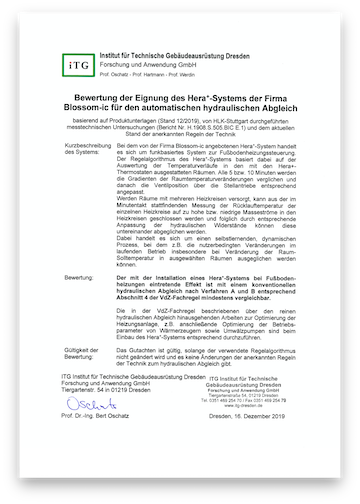

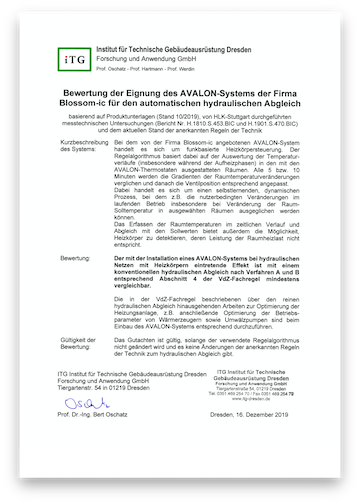

Functionality confirmed by reports from institutes with the highest accreditation level
The benefits for your customer
High energy savings
Optimal heat distribution
Highest heating comfort through blossom-ic control
State funding (up to 45% depending on the funding program)
System can be expanded with smart home products
FREQUENTLY ASKED QUESTIONS

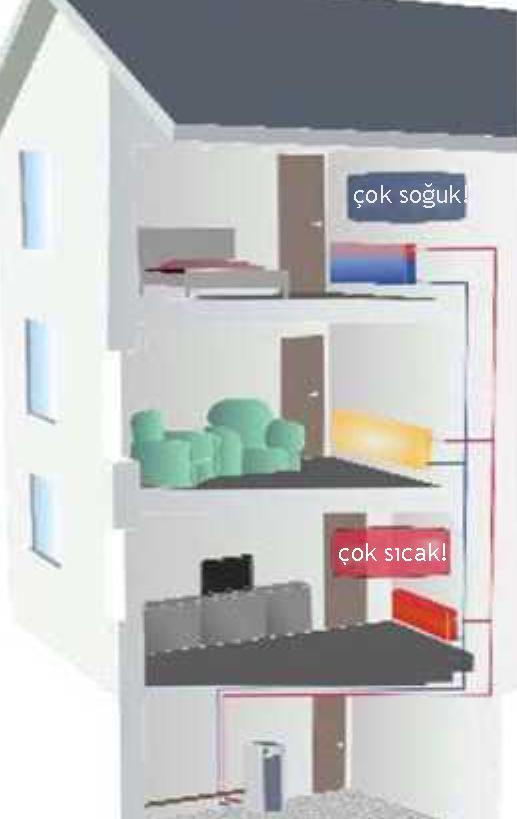

The colloquial wisdom "Water seeks the path of least resistance" is familiar to everyone and is associated with the idea that water seeks the flow path that can be overcome with the least effort. According to this principle, the heating water wants to return to the boiler by the quickest route. This often leads to rooms away from the heating centre, for example in the attic, not getting really warm. On the other hand, rooms close to the boiler become too hot.
> Inefficiency of the heating system - high heating costs
> Low living comfort - cold rooms
> Environmentally harmful
> Flowing noises on the radiators

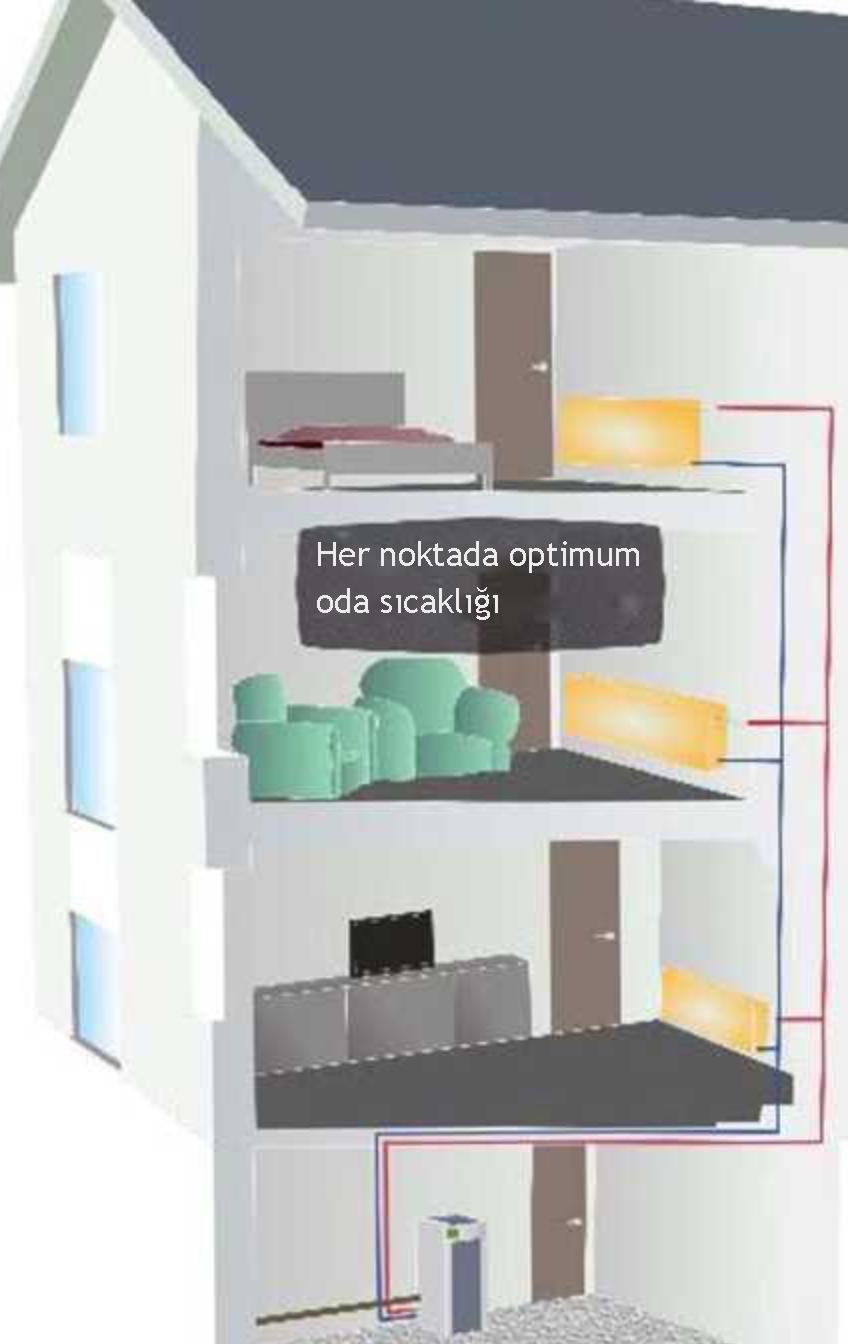

Hydraulic balancing eliminates these problems and ensures an even heat distribution in the house.
Always, since it is mandatory! Especially when the heating is difficult to regulate - indications of this are noises on the radiators such as hissing or whistling. Another typical feature: Individual rooms remain cold, even though the radiators in the rooms are fully turned up.
The expert first calculates the heat requirement for each individual room. On this basis he determines the required flow rate of heating water. He then sets the calculated values on the presettable thermostatic valve of each radiator. As a rule, presettable valves must be retrofitted as part of the balancing process. With all the inconvenience of emptying + filling the system and the associated costs.
On average, hydraulic balancing for a single-family house costs up to 1,250 euros. The price depends on how many thermostatic valves need to be replaced and whether the heating pump is replaced. On the other hand, this modernization offers a potential saving of around 110 euros per year. The additional installation of a high-efficiency pump makes hydraulic balancing perfect and also saves on electricity costs.
> Full functionality of all radiators or underfloor heating
> Regulations are observed and fulfilled
> Improved living comfort: no more cold rooms and noise
> Increase in value of the property
> High energy saving
> Active contribution to environmental protection: lower CO2 emissions
> Excellent cost/benefit ratio
> High efficiency: low energy consumption and lower heating costs
